500mm x 500mm LED Panel Light (5000k)

90% of 100

- 28W LED Panel (495mm x 495mm x 10mm)
- 5-year warranty on the panel and driver
- Epistar 4014, 100 lumen per watt LED Chips
- 120 degree beam angle
- 5000k
- Dimmable & 3 Hour Emergency Options
- White Aluminium Bezel
- Includes branded AGT Non-Flickering driver driver

£36.00 £30.00

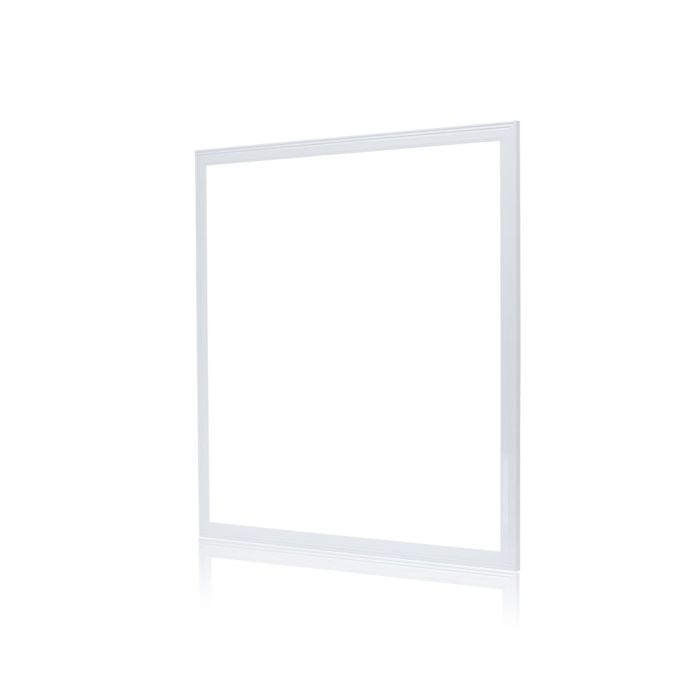

LED Panel Store’s 500mm x 500mm LED light panel (actual size 495mm x 495mm x 10mm) is the most common size of LED panel for installation in suspended ceilings.

It is ideal as a direct replacement for existing 500 x 500 four-tube fluorescent modular fittings, but only consumes 28W of electricity – giving a savings of over 50%!

This LED panel is 100 lumens per watt and have white powder coated aluminium frames, which will match perfectly with white ceiling grids.

Each LED panel comes complete with a double insulated plug and play driver (transformer) which simply wires into the existing lighting circuit via a live and neutral.

Emergency Packs are available, which are British designed and manufactured specifically for our panels. These provide over 3 hours of maintained light output without the additional expense and inconvenience of separate emergency lighting.

The optional dimming can be achieved by either of the following 5 methods:
1) 1-10V dimming - using a wall mounted 1-10v dimmer switch (please note that control wires are required from the dimmable driver to the switch).
2) 1-10V dimming - using a 2.4GHz RF remote control and 1-10V dimmer controller.
3) TRIAC dimming - with a conventional wall mounted TRIAC dimmer switch using your existing wiring.
4) DALI dimming - with a DALI controller.
5) PUSH Dim dimming - also known as switch dimming using a retractable switch using your existing wiring.

For more information on dimming, please call 01652 638850 and ask to speak with one of our fully qualified electricians.

Various mounting options are available HERE including:

Cable Suspension kits – for ceiling mounting with a contemporary look
Z brackets – ideal for wall mounting
Surface mounting boxes - useful for mounting on concrete or plasterboard ceilings/walls
Spring clips – for plasterboard ceilings only
