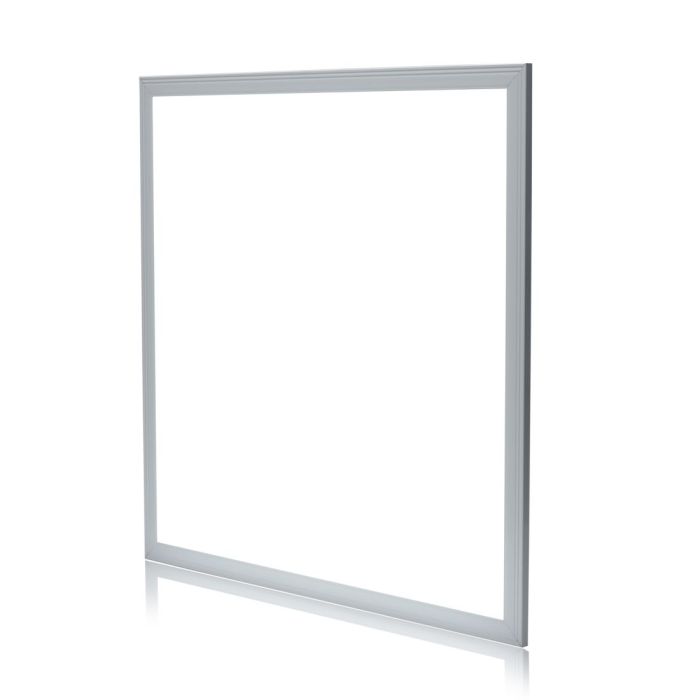

600x600 CCT Selectable Backlit LED Panel 150lm/W 18-28W

- 18-28W providing 2700-4200lm
- 5-year warranty on the panel and driver
- Epistar 4014, 150 lumen per watt LED Chips
- TRI-COLOUR (4000K / 5000K / 6000K)
- 3 Hour Emergency Option Available
- White Aluminium Bezel
- Includes Eaglerise flicker-free driver

£33.00 £27.50

Our NEW Back Lit 600mm x 600mm TRI-COLOUR LED panel lights are ideal as a direct replacement for 600 x 600 four-tube fluorescent modular fittings which are the size most frequently found in offices.

Not only is the CCT selectable by switch to 4000K / 5000K / 6000K, but the wattage can also be changed from 18-28W according to your requirements.

The low cost comes with an incredible 150lm/W efficacy to provide 2700-4200lm of light, which is at least as much light as its fluorescent counterpart.

For peace of mind this LED panel comes complete with a 18-28W Eaglerise flicker-free driver. The DC connection to the panel is plug-and-play for ease of installation, and the AC is simply wired into the existing lighting circuit via a live and neutral.

The panels have a durable white powder coated aluminium frame, which will match white ceiling grids perfectly.

The secret behind the incredible low price, but high performance of this panel is that it is "back lit", which means that the LEDs are affixed to the back of the panel and emit light towards the front of the panel.

(Most LED panels are "edge lit" which means that the LEDs are fitted in the edge of the panel and shine light towards the centre of the panel, where a special plastic component called a Light Guide Plate (LGP) "pushes" the light out of the front of the panel. This LGP is relatively expensive and absorbs some light, meaning that back lit panels, which do not require an LGP, have a cost and also efficiacy advantage over Edge Lit panels.

The only noticeable difference between this Back Lit LED panel and our Edge Lit LED panels is that being 32mm it is a little thicker than our Edge Lit panels which are 10mm. However, in most cases this does not matter as there usually plenty of space above the ceiling grid to allow installation.

To ensure that the panel doesn't have dark spots special lenses are fitted over each LED, while to ensure the durability of the automated LED fixing process each PCB is tested to withstand a downwards pull force of 850g for 30 days at operating temperature.

Emergency Packs are available, which are British designed and manufactured specifically for our panels. These provide over 3 hours of maintained light output without the additional expense and inconvenience of separate emergency lighting.

Optional dimming can be achieved by either of the following 3 methods:
1) 1-10V dimming - using a wall mounted 1-10v dimmer switch (please note that control wires are required from the dimmable driver to the switch).
2) 1-10V dimming - using a 2.4GHz RF remote control and 1-10V dimmer controller.
3) TRIAC dimming - witha conventional wall mounted TRIAC dimmer switch using your existing wiring.


For more information on dimming, please check out our LED Panel Dimming Guide,  or for more information call us on 01652 638850 and ask to speak with one of our fully qualified electricians.


Z brackets
Surface mounting boxes
Spring clips
Cable Suspension kits
